ASP.Net 2.0 User Management System.

I could not believe how easy this was to get working, well I was shocked at least, so without any further introduction here goes:

How to creating the ASP NET User and Role account

If like me you have a limited number of SQL databases available to you from your host ISP, you will probably be saying to yourself "but I want to create the tables and schema's inside of an existing database".  Well this is not a problem.

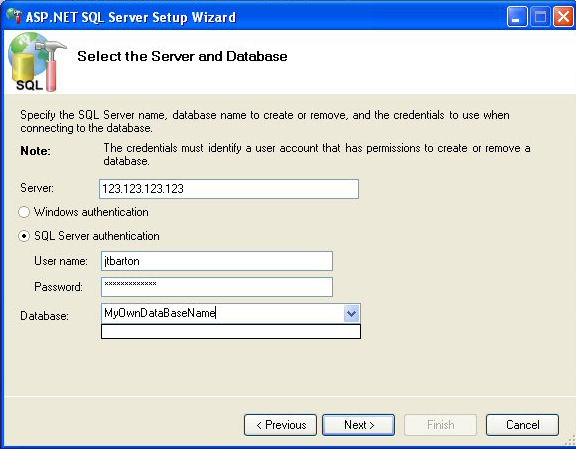

Go to the command line and run aspnet_regsql.exe without any parameters, this will bring up a Graphical User Interface (GUI) allowing you to point to a SQL server hosted by your ISP, and allow you to login to the server using SQL authentication, and then select an existing database. For further details refer to the Microsoft article - ASP.NET SQL Server Registration Tool



Web.Config settings

Configuring your web.config file to use the database.  Note there are a few issues that you should be aware off:
  • The ApplicationPath defaults to blank and therefore the location of your application
  • When you move or deploy the application, this will mean that the location has changed and the web site can no longer find the users / roles / membership for the new application.
For a detailed description please refer to: Always set the "applicationName" property when configuring ASP.NET 2.0 Membership and other Providers

All of the following tags are within the <configuration> </configuration> tags.

Connection String to the SQL database
<connectionstrings>
    <Add
       name="AspUserMangement"
       connectionstring="Data Source=123.123.123.123;
         Initial Catalog=MyOwnDataBaseName;
         Persist Security Info=True;
         User ID=jtbarton;
         Password=GuessMe;"
    />
</connectionstrings>

User and Role Membership
<system.web>
  <membership defaultProvider="SqlProvider">
    <providers>
        <clear/>
        <add name="SqlProvider"
          type="System.Web.Security.SqlMembershipProvider"
          connectionStringName="AspUserMangement"
          enablePasswordRetrieval="false"
          enablePasswordReset="true"
          requiresQuestionAndAnswer="false"
          passwordFormat="Hashed"
          applicationName="/" />
    </providers>
  </membership>

  <roleManager defaultProvider="SqlProvider"
          enabled="true"
          cacheRolesInCookie="true"
          cookieName="jtbarton.com"
          cookieTimeout="30"
          cookiePath="/"
          cookieRequireSSL="false"
          cookieSlidingExpiration="true"
          cookieProtection="All" >
    <providers>
        <clear/>
        <add
          name="SqlProvider"
        type="System.Web.Security.SqlRoleProvider"
        connectionStringName="AspUserMangement"
        applicationName="/" />
    </providers>
    </roleManager>
</system.web>

Email configuration
This will vary, but for my host all I need to provide is
<system.net>
    <mailSettings>
      <smtp deliveryMethod="network">
<network host="mail.yourdomain.com" port="2525" username="TheUser" password="ThePassword" /> </smtp> </mailSettings> </system.net>

What's Next

Surprisingly very little, just drop on the controls from the Toolbox Login section, and they will work out of the box.
Want me to show you, click here  to see login control samples in action, but there is no code to see, promise, all this functionality is straight out of the box, well toolbox.

Where to find additional information

This article is based on the information provided by 4GuysFromRolla.com, Click here for the article Examining ASP.NET 2.0's Membership, Roles, and Profile  By Scott Mitchell.  There are 4 parts to this article which further go on to explain about role management, and improving the login experience.  My personal thanks go out to Scott for creating such a fantastic article.
